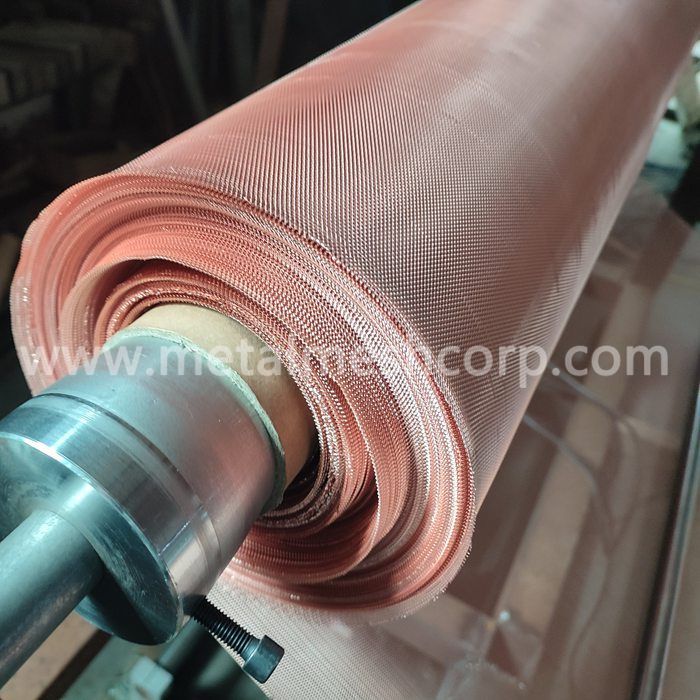

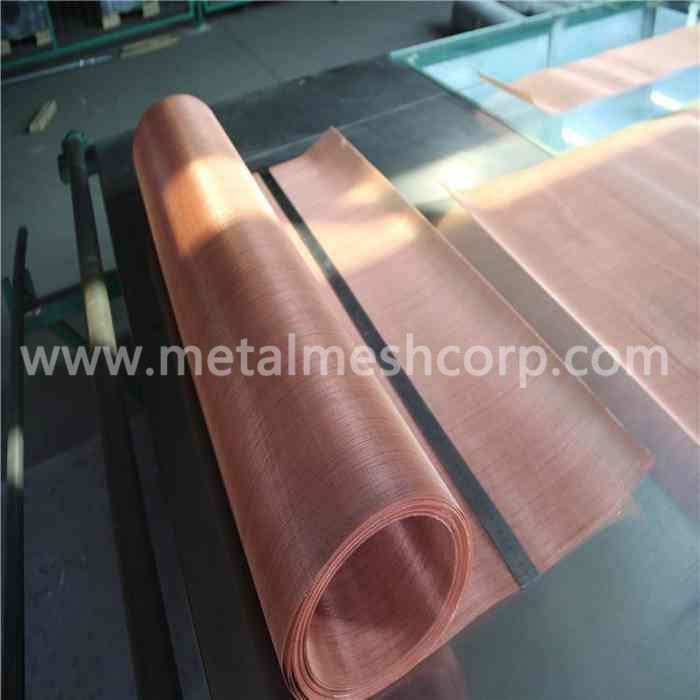

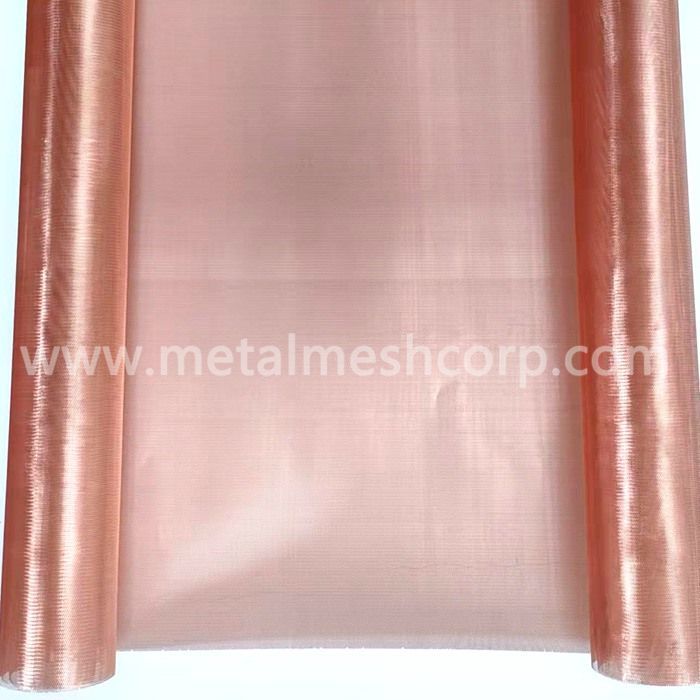

Copper Expanded Mesh is mainly used for electromagnetic shielding and antistatic. The conductive copper expanded mesh has excellent conductivity and provides electromagnetic shielding effect.
Product parameters
Micro Aluminum Expanded Mesh for lightning strike protection | ||||
AISN Code | AISNAL-66F | AISNAL-107 | AISNAL-141F | AISNAL-195F |
Weight(g/sqm) | 66 | 78 | 78 | 136 |
Metal thickness | 0.051mm | 0.102mm | 0.102mm | 0.127mm |
LWD | 1.905mm | 2.032mm | 2.032mm | 2.032mm |
Overall thickness | 0.051mm | 0.152mm | 0.102mm | 0.152mm |
Open area | 52% | 71% | 71% | 60% |
Flattened | Leveled | Flattened | Flattened | |
Micro Expanded Copper Mesh Foil for lightning strike protection | ||||
AISN Code | AISNCU-66 | AISNCU-107 | AISNCU-141 | AISNCU-195 |
Weight(g/sqm) | 73 | 107 | 141 | 195 |
Metal thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm |
LWD | 2.54mm | 2.54mm | 3.175mm | 2.54mm |
Overall thickness | 0.102mm | 0.127mm | 0.127mm | 0.127mm |
Open area | 84% | 76% | 79% | 70% |
Annealed | Annealed | Annealed | Annealed | |
Flattened Micro Expanded Copper Mesh Foil for lightning strike protection | |||||
AISN Code | AISNCU-66F | AISNCU-107F | AISNCU-141F | AISNCU-195F | AISNCU-175F |
Weight(g/sqm) | 73 | 107 | 141 | 195 | 175 |
Metal thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm | 0.041mm |
LWD | 2.54mm | 2.54mm | 3.175mm | 2.54mm | 2.54mm |
Overall thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm | 0.045mm |
Open area | 84% | 76% | 79% | 70% | 52% |
Flattened Annealed | Flattened Annealed | Flattened Annealed | Flattened Annealed | Flattened Annealed | |
Product Features
Copper expanded mesh is stretched by pressing machine to expand the metal plate to the required size. Therefore, compared with woven mesh and perforated sheet, copper expanded mesh has no material waste and low cost. The more important is that the strand of copper expanded mesh is more uniform, and there will be no sudden change in the current conduction cross-section, which will affect the electrical conductivity.
Scope of application
important application of Copper Expanded Mesh:
EMI Shielding
Wind powder
Lightning protection of wind turbine blades
Wind power blade
battery mesh
Current collector network

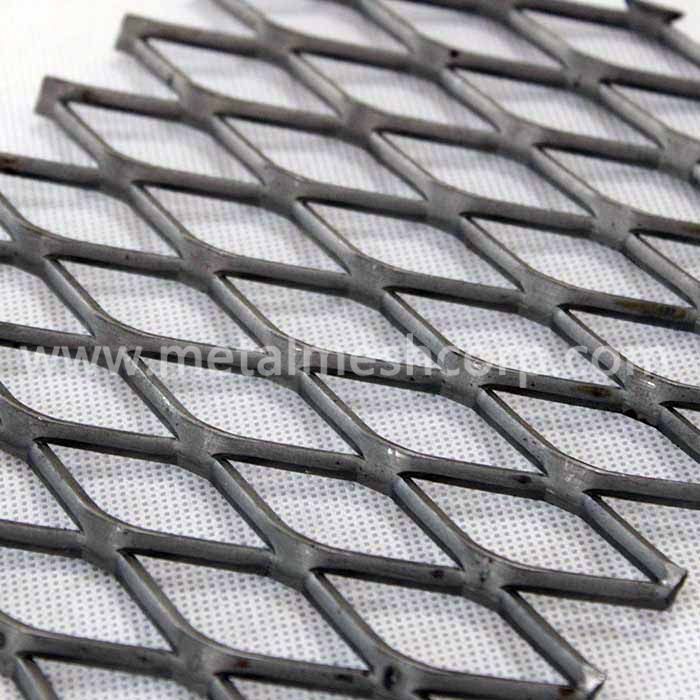

Gutter Guard Aluminum Expanded Mesh Aluminum Expanded Metal Mesh is made from aluminum plate that is uniformly punched/slit and stretched, forming openings of diamond / rhombic (standard) shape. Being expanded, the aluminum mesh plate will be in shape for a long time under normal conditions. The diamond-shaped structure and trusses make this type of mesh grille strong and rigid.
