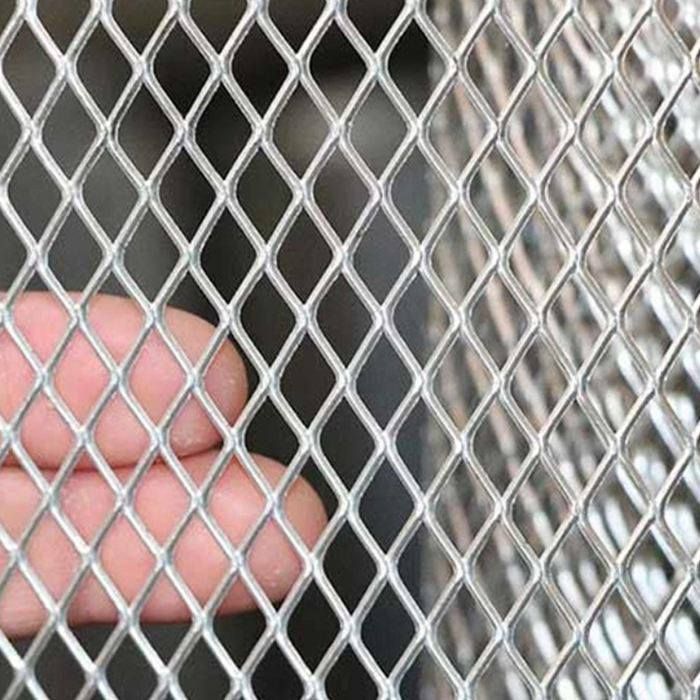

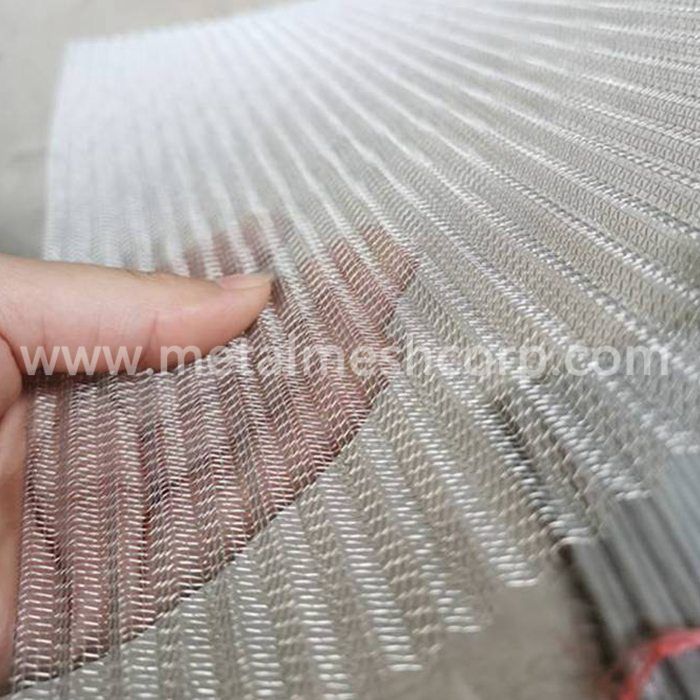

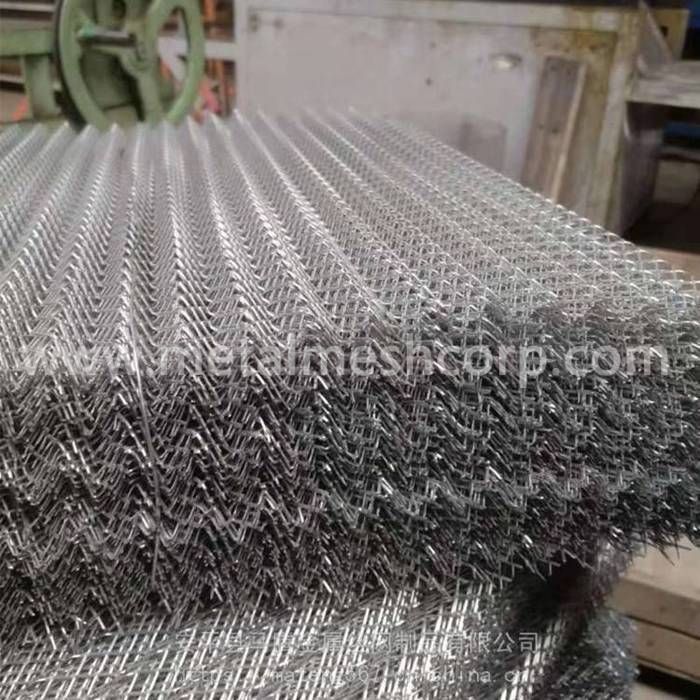

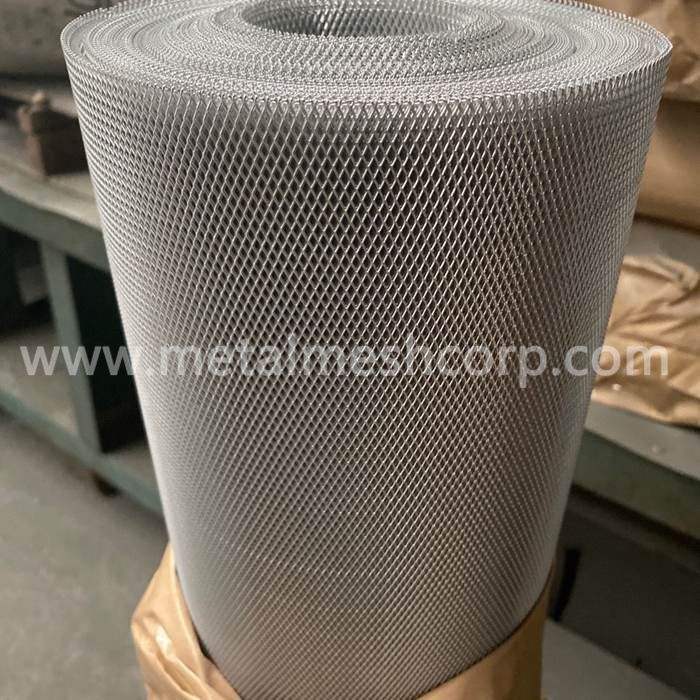

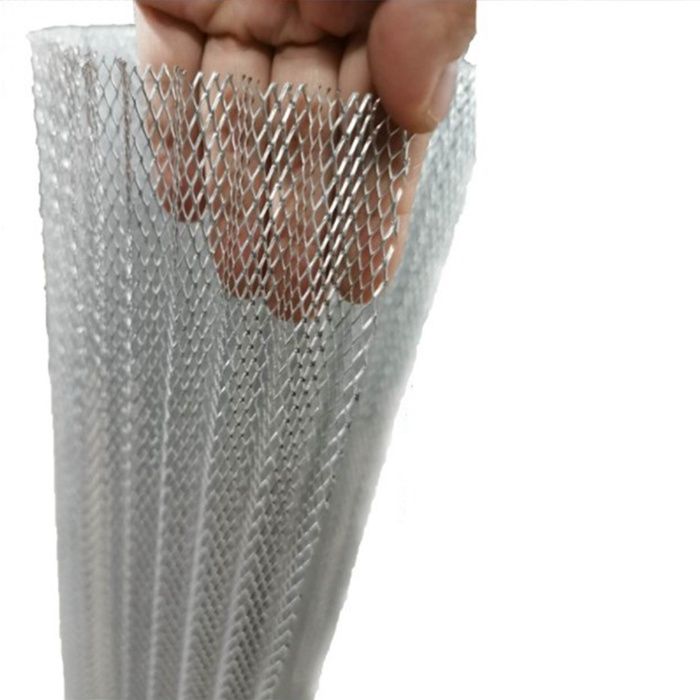

Expanded aluminum coils usually micro expanded metal with aluminum material.The hole opening is small for widely application in air filter,gas filter,liquid filter,lamp cover,gutter guard,decoration,etc.
Product parameters
Micro Expanded Metal Hole Sizes Specification | ||||||
SWM | LWM | Strand Thick | Strand Width | Width | Material | Min Qty |
0.50mm | 0.70mm | 0.05mm | 0.10-0.15mm | 70-100mm | 304/316/Alum | 200m2 |
0.60mm | 0.80mm | 0.08-0.10mm | 0.15-0.20mm | 100-200mm | 304/316/Alum | 200m2 |
0.70mm | 1.00mm | 0.10-0.15mm | 0.15-0.20mm | 100-200mm | 304/316/Alum | 200m2 |
0.70mm | 1.25mm | 0.10-0.20mm | 0.15-0.25mm | 100-250mm | 304/316/Alum | 200m2 |
0.90mm | 1.50mm | 0.10-0.30mm | 0.20-.30mm | 100-300mm | 304/316/Alum | 200m2 |
0.90mm | 1.50mm | 0.20-0.40mm | 0.20-0.40mm | 100-300mm | 304/316/Alum | 200m2 |
1.00mm | 2.00mm | 0.15-0.40mm | 0.15-0.5mm | 150-300mm | 304/316/Alum | 200m2 |
1.40mm | 2.00mm | 0.15-0.50mm | 0.15-0.50mm | 150-500mm | 304/316/Alum | 200m2 |
1.50mm | 2.50mm | 0.20-0.50mm | 0.20-0.50mm | 150-500mm | 304/316/Alum | 200m2 |
2.00mm | 3.00mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
2.20mm | 3.00mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
2.40mm | 3.00mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
2.40mm | 3.50mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
2.40mm | 4.00mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
3.00mm | 5.00mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
3.00mm | 6.00mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
4.00mm | 6.00mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
4.00mm | 8.00mm | 0.20-0.60mm | 0.20-0.60mm | 150-600mm | 304/316/Alum | 200m2 |
Product Features
Features of expanded aluminum coil:
High corrosion resistance
High current efficiency
High durability
Base Metal can be cycle used
High current density, high productivity
Light weight
Scope of application
Cooling ventilation covers
mechanical transmission,
protective covers for vehicles, air compressors, etc.,
audio speaker,
filters tube,filter discs,
air conditioning equipment,
satellite antennas,
outdoor furniture,
mechanical equipment protection
