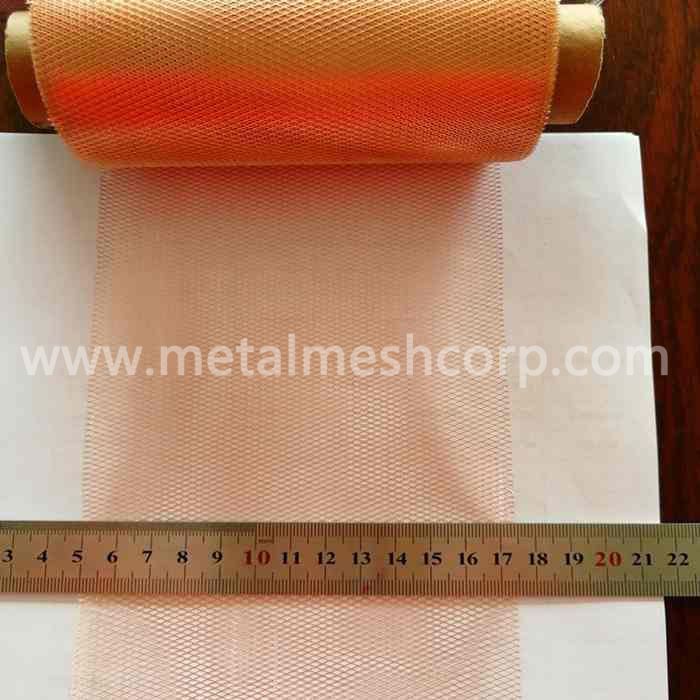

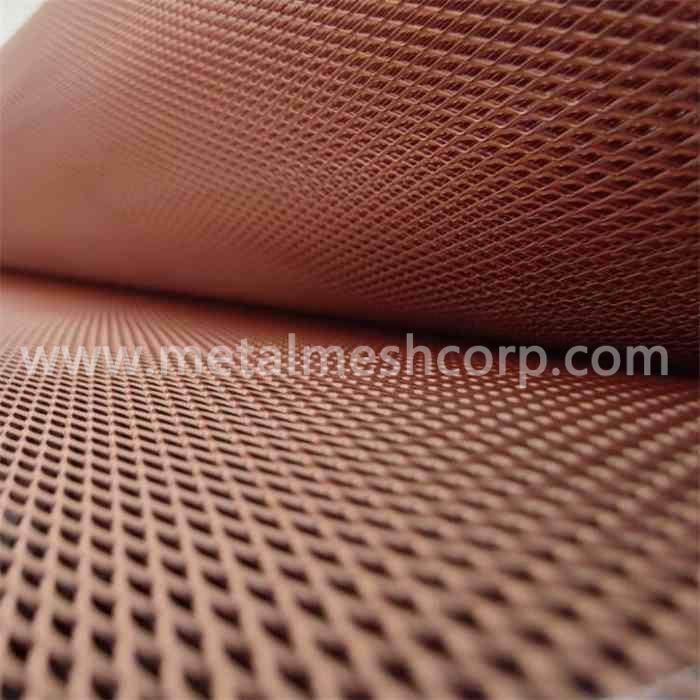

AISN copper Expanded Copper Mesh foils are the materials of choice for lightning strike protection in composite aircraft structures,EMI Shielding,Aerospace,Battery Mesh.
Product parameters
Micro Aluminum Expanded Mesh for lightning strike protection | ||||
AISN Code | AISNAL-66F | AISNAL-107 | AISNAL-141F | AISNAL-195F |
Weight(g/sqm) | 66 | 78 | 78 | 136 |
Metal thickness | 0.051mm | 0.102mm | 0.102mm | 0.127mm |
LWD | 1.905mm | 2.032mm | 2.032mm | 2.032mm |
Overall thickness | 0.051mm | 0.152mm | 0.102mm | 0.152mm |
Open area | 52% | 71% | 71% | 60% |
Flattened | Leveled | Flattened | Flattened | |
Micro Expanded Copper Mesh Foil for lightning strike protection | ||||
AISN Code | AISNCU-66 | AISNCU-107 | AISNCU-141 | AISNCU-195 |
Weight(g/sqm) | 73 | 107 | 141 | 195 |
Metal thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm |
LWD | 2.54mm | 2.54mm | 3.175mm | 2.54mm |
Overall thickness | 0.102mm | 0.127mm | 0.127mm | 0.127mm |
Open area | 84% | 76% | 79% | 70% |
Annealed | Annealed | Annealed | Annealed | |
Flattened Micro Expanded Copper Mesh Foil for lightning strike protection | |||||
AISN Code | AISNCU-66F | AISNCU-107F | AISNCU-141F | AISNCU-195F | AISNCU-175F |
Weight(g/sqm) | 73 | 107 | 141 | 195 | 175 |
Metal thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm | 0.041mm |
LWD | 2.54mm | 2.54mm | 3.175mm | 2.54mm | 2.54mm |
Overall thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm | 0.045mm |
Open area | 84% | 76% | 79% | 70% | 52% |
Flattened Annealed | Flattened Annealed | Flattened Annealed | Flattened Annealed | Flattened Annealed | |
Product Features
Carbon fiber is commonly used in modern aircraft,without the surface protection,it is easy to damaged by lightning strikes.However,the consequences of lightning strikes are expensive to repair and difficult to diagnose.Then expanded copper mesh foil or aluminum expanded metal foil is used for exterior aircraft composites,and applied near the surface of the laminate schedule.When the lightning strikes occur,the copper expanded mesh is more conductive the underlying carton layers,the damage is readily visible at the part’s surface.
Scope of application
Application of copper expanded mesh:
Aerospace
Wind Energy
Battery mesh
Electrolyzer
Filtration
EMI shielding
Automotive
flue gas denitrification

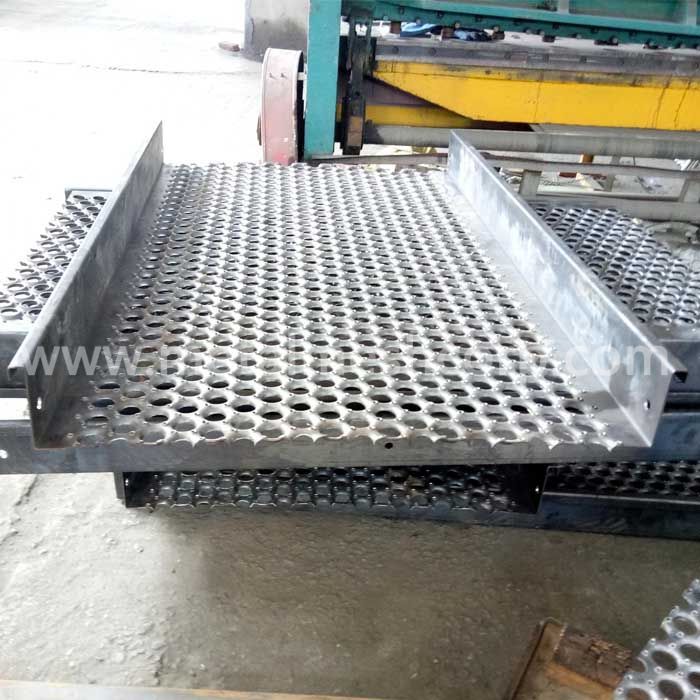

Perf-O Grip Walkway Plank Grip Strut safety Grating Manufactured with a uniform pattern of large de-bossed holes surrounded by slip-resistant perforated buttons.
Decorative Architectural Wire Mesh Decorative Architectural Wire Mesh cladding used in building interior and exterior design and artistic applications more than 10 years. They are suitable used for metal curtains and separations, building facades, railing, wall and ceilings.

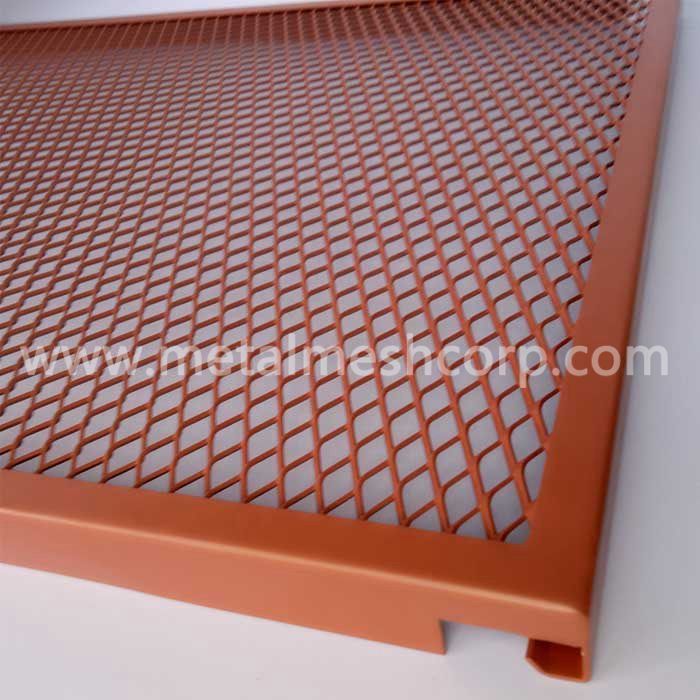

Decorative Expanded Metal Ceiling Tiles Aluminum Expanded Metal Mesh is made from aluminum plate that is uniformly punched/slit and stretched, forming openings of diamond / rhombic (standard) shape. Being expanded, the aluminum mesh plate will be in shape for a long time under normal conditions. The diamond-shaped structure and trusses make this type of mesh grille strong and rigid.
