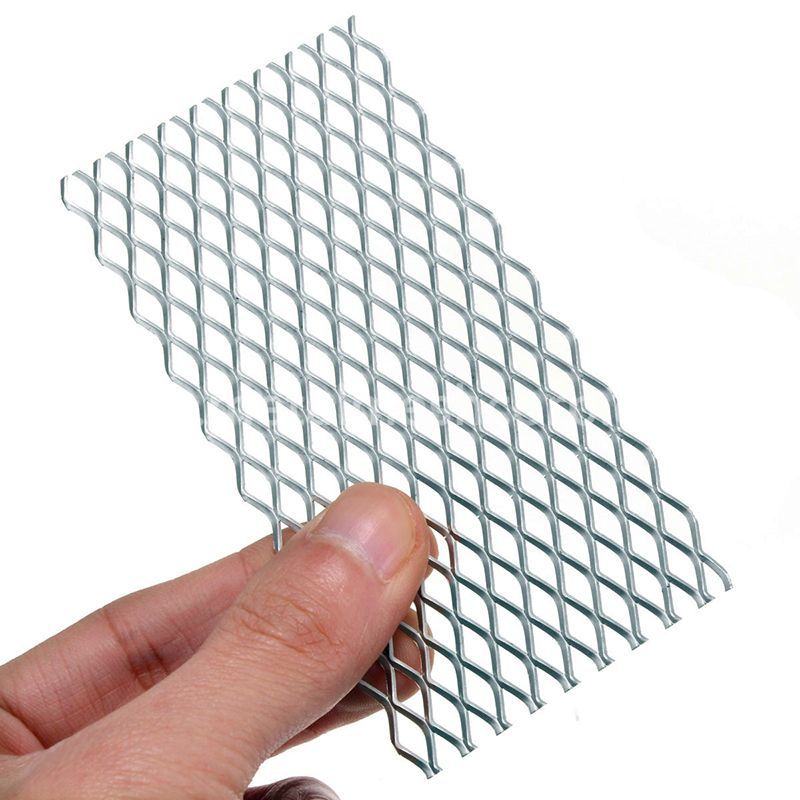

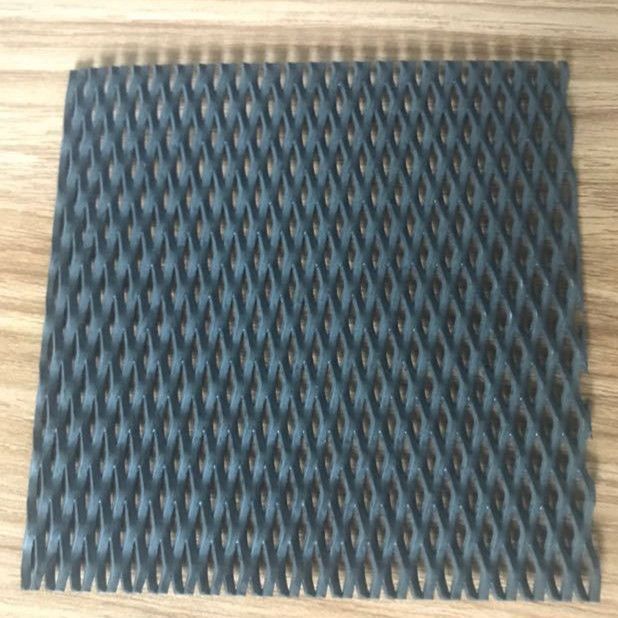

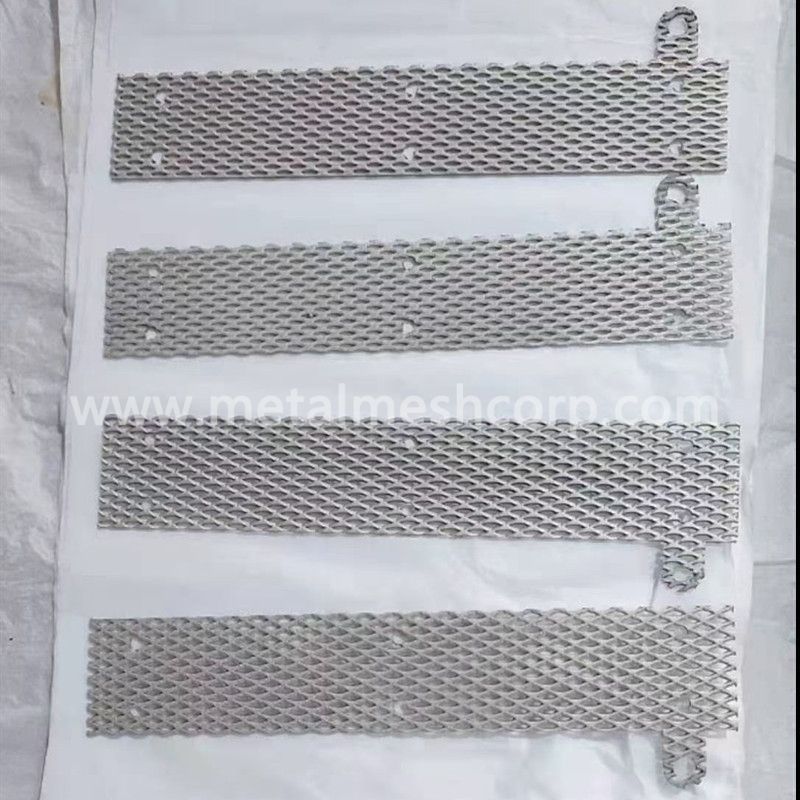

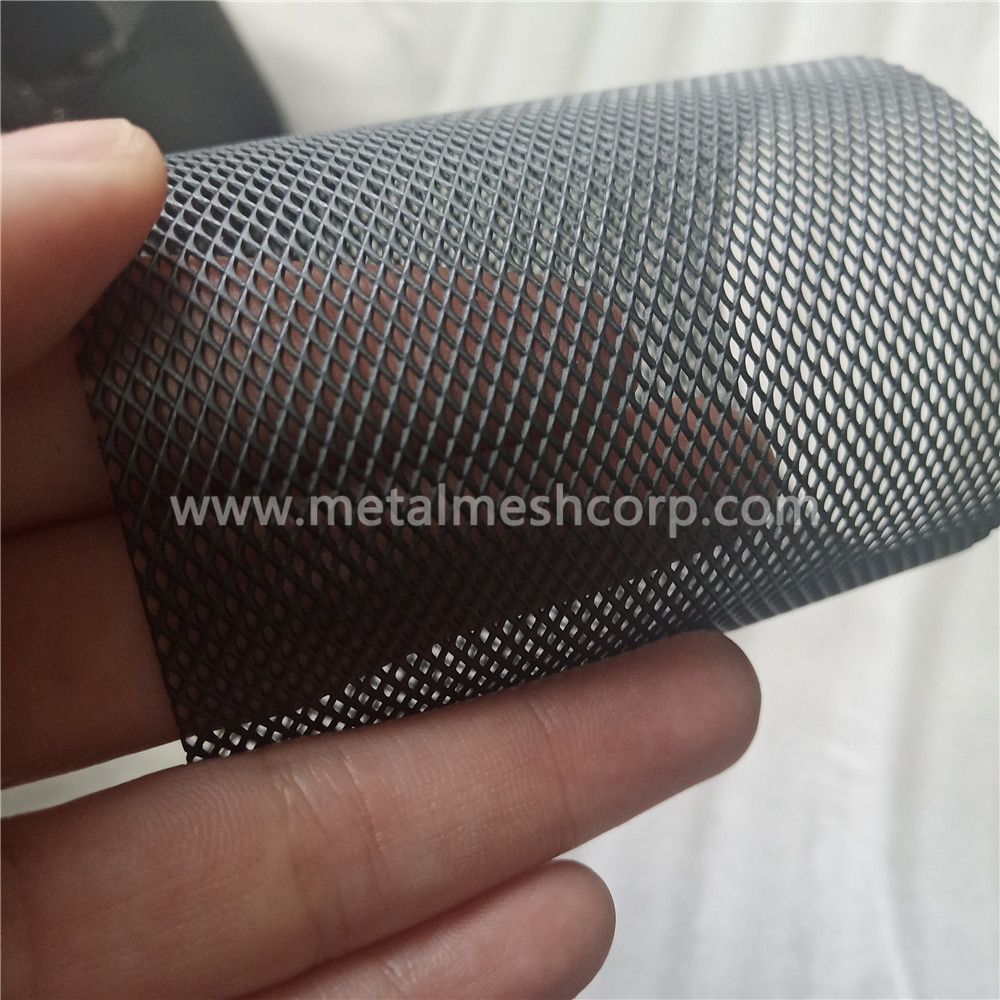

Our factory produce Titanium expanded mesh foils that match performance characteristics for your dimensional, conductivity, weight or strength demands.
Product parameters
| Specifications of Titanium expanded metal mesh | ||||||
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
Product Features
Titanium expanded mesh is mainly used for sieving and filtration or gas, liquid filtration and other media separation under acid and alkali environmental conditions. In the environment of corrosion-resistant medium, the surface of pure titanium expanded mesh forms a dense, strong adhesion and inert oxide film, which produces passivation and protects the titanium wire mesh matrix from corrosion, thereby achieving strong corrosion resistance; Especially in the following use environments, the corrosion resistance is more excellent
Scope of application
Titanium expanded mesh can be used in :
high temperature resistant filter mesh,
shipbuilding,
military manufacturing,
chemical filter mesh,
mechanical filter element,
electromagnetic shielding mesh,
seawater desalination filter mesh,
high temperature electric furnace heat treatment mesh,
petroleum filter mesh, food processing,
pharmaceutical filtration,
