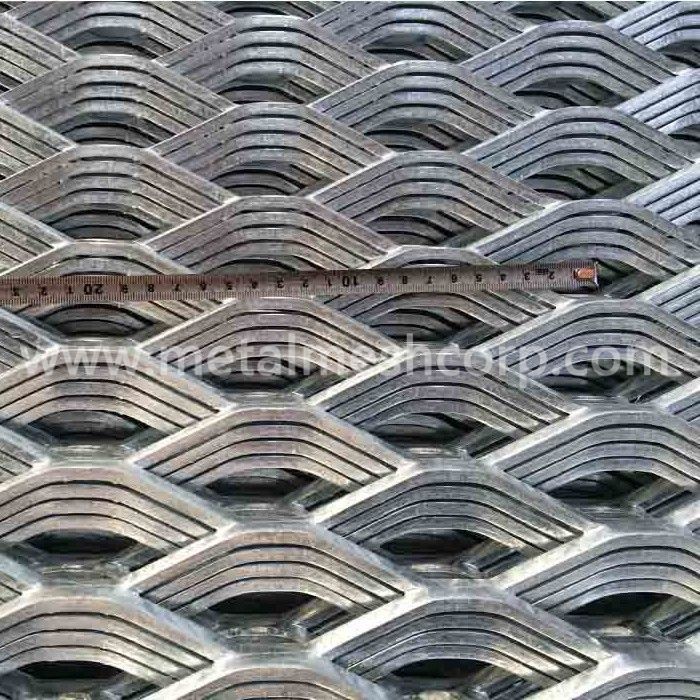

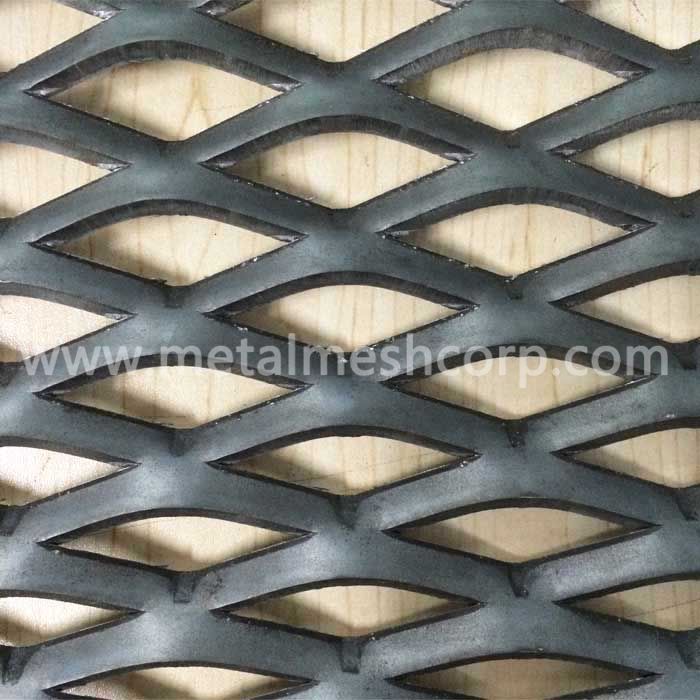

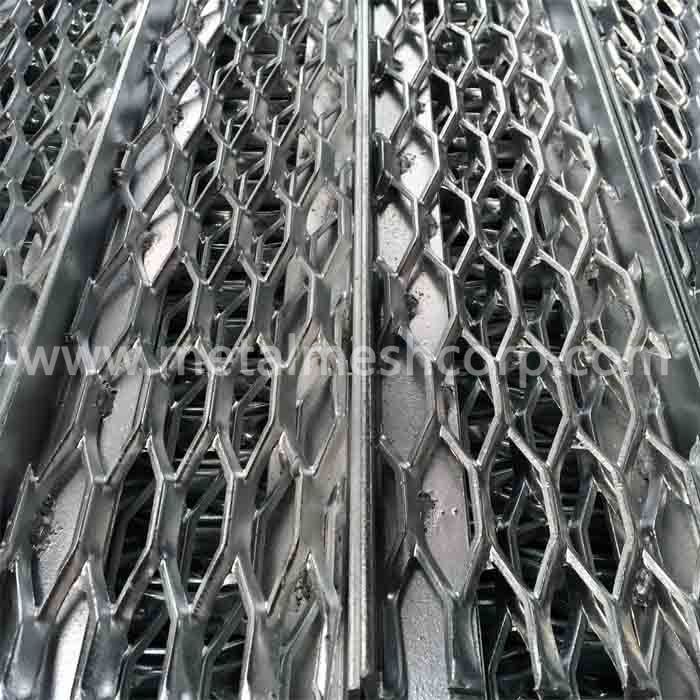

Expanded Metal Walkway Mesh has no welds or joins and its features of high strength to weight ratio makes it suitable for many industrial and ornamental applications.
Product parameters
Parameters for Expanded Metal Walkway Mesh:
| XS/XG Expanded Metal | Thickness | Strand | LWDXSWD | LWM | SWM |
| Expanded Metal XS-31 | 1.2 | 1.5 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-33 | 2.3 | 3 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-41 | 1.6 | 2 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-42 | 2.3 | 2.5 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-43 | 3.2 | 3.5 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-51 | 1.6 | 2.5 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-52 | 2.3 | 3 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-53 | 3.2 | 4 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-61 | 2.3 | 3 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-62 | 3.2 | 4 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-63 | 4.5 | 5 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-71 | 2.3 | 3.5 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-72 | 3.2 | 4 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-73 | 4.5 | 5 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-81 | 3.2 | 4 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-82 | 4.5 | 5 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-83 | 6 | 6 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-91 | 3.2 | 5 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XS-92 | 4.5 | 6 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XS-93 | 6 | 7 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XG-11 | 4.5 | 7 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-12 | 6 | 7 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-13 | 6 | 9 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-14 | 8 | 9 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-21 | 4.5 | 7 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-22 | 6 | 7 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-23 | 6 | 9 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-24 | 8 | 9 | 101.6x36 | 1220 | 2440 |
| Flattened /Standard Expanded Metal for Walkway Mesh | ||||||
| Flattened Expanded Metal Style | Weight in lbs.per C.S.F | Standard Size in feet | SWD | LWD | Size of Strands in inches | |
| Flattened Expanded 1/4" #20 | 83 | 4X8 | 0.255 | 1.030 | 0.086 | 0.03 |
| Flattened Expanded 1/4" #18 | 111 | 4X8 | 0.255 | 1.030 | 0.086 | 0.04 |
| Flattened Expanded 1/2" #20 | 40 | 4X8 | 0.500 | 1.260 | 0.07 | 0.029 |
| Flattened Expanded 1/2" #18 | 66 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.109 | 0.039 |
| Flattened Expanded 1/2" #16 | 82 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.103 | 0.05 |
| Flattened Expanded 1/2" #13 | 140 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.122 | 0.07 |
| Flattened Expanded 3/4" #16 | 51 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.115 | 0.048 |
| Flattened Expanded 3/4" #14 | 63 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.119 | 0.061 |
| Flattened Expanded 3/4" #13 | 75 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.119 | 0.07 |
| Flattened Expanded 3/4" #10 | 114 | 4X8 | 0.923 | 2.100 | 0.16 | 0.07 |
| Flattened Expanded 3/4" #9 | 171 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.164 | 0.12 |
| Flattened Expanded 1" #10 | 165 | 4X8 | 1.090 | 2.560 | 0.16 | 0.11 |
| Flattened Expanded 1 1/2" #16 | 38 | 4X8 | 1.330 | 3.200 | 0.123 | 0.048 |
| Flattened Expanded 1 1/2" #14 | 46 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.138 | 0.06 |
| Flattened Expanded 1 1/2" #13 | 57 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.138 | 0.07 |
| Flattened Expanded 1 1/2" #12 | 66 | 4X8 | 1.330 | 3.200 | 0.116 | 0.085 |
| Flattened Expanded 1 1/2" #10 | 165 | 4X8 | 1.330 | 3.200 | 0.188 | 0.11 |
| Flattened Expanded 1 1/2 “ #9 | 111 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.175 | 0.11 |
When you order Expanded Metal Walkway Mesh,pls state:
Scope of application
Applications of expanded metal walkway mesh:

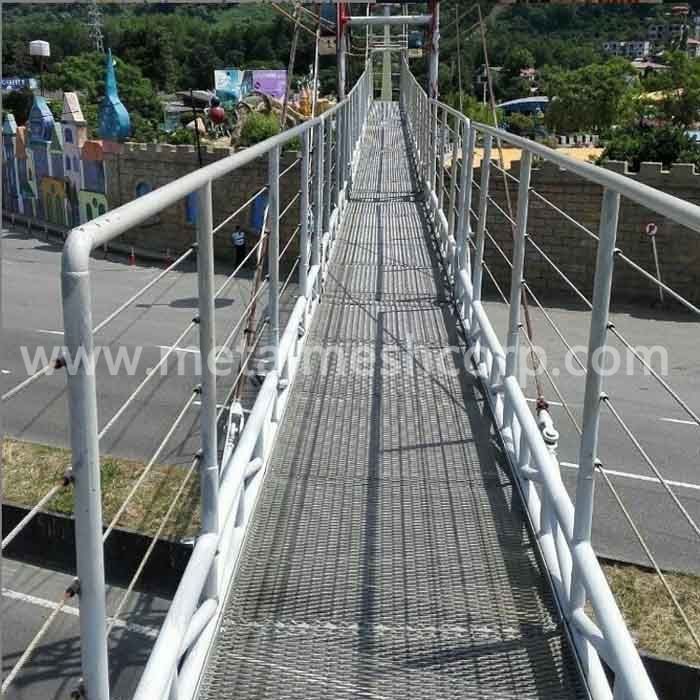

Walkways, stair treads and platforms
Pedestrian walkway safety barriers
sidewalking
decking and ramps
flooring plate
Laser cut metal panels Laser Cut Metal Panels can be used for multiple purposes in multiple ways. All Laser Cut Metal Panels can be used in luxury hotels, restaurants, offices, apartments and residences, and they can be adapted to any area depending on the design and materials.

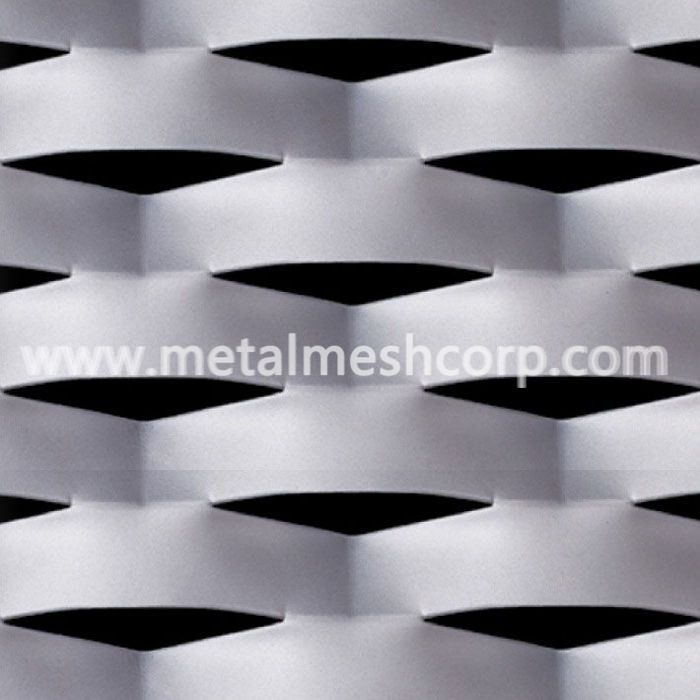

Decorative Expanded Metal Ceiling Tiles Aluminum Expanded Metal Mesh is made from aluminum plate that is uniformly punched/slit and stretched, forming openings of diamond / rhombic (standard) shape. Being expanded, the aluminum mesh plate will be in shape for a long time under normal conditions. The diamond-shaped structure and trusses make this type of mesh grille strong and rigid.
