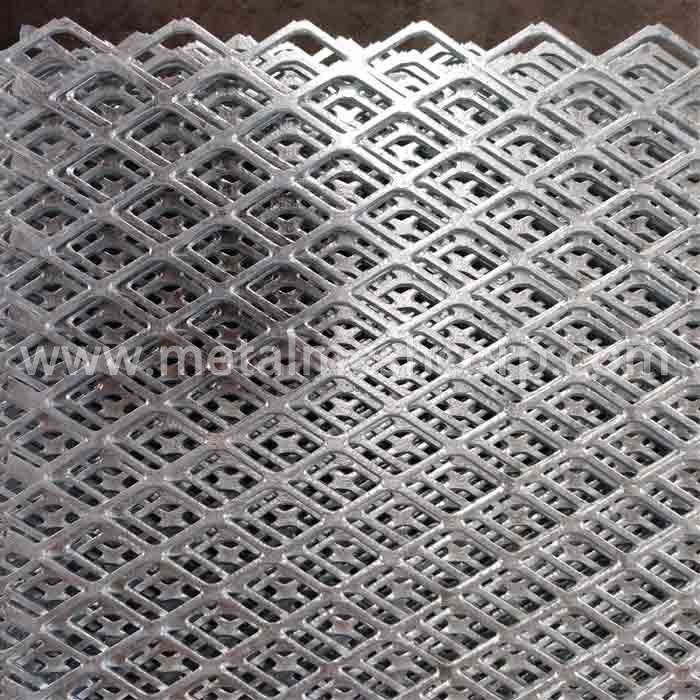

The expanded metal is protected by the zinc which corrodes instead of the steel, essentially sacrificing itself to protect the steel. Hot dipped galvanized expanded metal is popular used for outside construction.
Product parameters
How to Order Galvanized Expanded Metal ?.
When ordering or specifying Expanded Metal, please confirm:
• The Style
• Flattened or Raised
• Material
• Sheet Size
Example: Expanded Metal 3/4" # 9 Flattened,carbon steel, standard 4' x 8' sheet..
| Hot Dipped Galvanized Flattened Expanded Metal | ||||||
| Style | Weight in lbs.per C.S.F | Standard Size in feet | SWD | LWD | Size of Strands in inches | |
| 1/4" #20 | 83 | 4X8 | 0.255 | 1.030 | 0.086 | 0.03 |
| 1/4" #18 | 111 | 4X8 | 0.255 | 1.030 | 0.086 | 0.04 |
| 1/2" #20 | 40 | 4X8 | 0.500 | 1.260 | 0.07 | 0.029 |
| 1/2" #18 | 66 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.109 | 0.039 |
| 1/2" #16 | 82 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.103 | 0.05 |
| 1/2" #13 | 140 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.122 | 0.07 |
| 3/4" #16 | 51 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.115 | 0.048 |
| 3/4" #14 | 63 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.119 | 0.061 |
| 3/4" #13 | 75 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.119 | 0.07 |
| 3/4" #10 | 114 | 4X8 | 0.923 | 2.100 | 0.16 | 0.07 |
| 3/4" #9 | 171 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.164 | 0.12 |
| 1" #10 | 165 | 4X8 | 1.090 | 2.560 | 0.16 | 0.11 |
| 1 1/2" #16 | 38 | 4X8 | 1.330 | 3.200 | 0.123 | 0.048 |
| 1 1/2" #14 | 46 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.138 | 0.06 |
| 1 1/2" #13 | 57 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.138 | 0.07 |
| 1 1/2" #12 | 66 | 4X8 | 1.330 | 3.200 | 0.116 | 0.085 |
| 1 1/2" #10 | 165 | 4X8 | 1.330 | 3.200 | 0.188 | 0.11 |
| 1 1/2 “ #9 | 111 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.175 | 0.11 |
Product Features
If the steel is damaged the corrosion products from the zinc are deposited on the damaged area of the expanded metal sheet, thereby resealing it from the atmosphere preventing the sideways creep of corrosion. Galvanizing expanded can protect the steel for up to 20 years if applied in the correct in environment.
Hot dipped galvanised expanded metal are a cost effective solution for long term to medium protection, although non cosmetic in appearance in terms of Architectural applications, galvanised sheets can be painted. They provide a cost effective, long term protective solution.
Scope of application
Galvanized Expanded Metal is used in a variety of specialty applications, such as lawn furniture,book and storage shelves, lamps and lamp shades, fireplace screens, many types of grilles, occasional tables, folding screens, room dividers, and air filtration filters.
Air and Fluid Filters
Ventilation Systems
Pest control, Screening and Grading, Milling, Flooring for Pigs, Sheep or Cattle
Outdoor Furniture
Speaker Grills
Security Walls, Ceilings, Floors, Doors
Machine and Window Guards
Fencing
Shelving and Racks
Concrete Reinforcements
Walkways and Stair Treads
Industrial Expanded Metal Industrial Expanded Metal commonly used for industry,including expanded metal walkway, stair treads,platform in workshop,screening, safety guard wall of machinery, cable shelves,basket enclosure,protection walls,security fence
