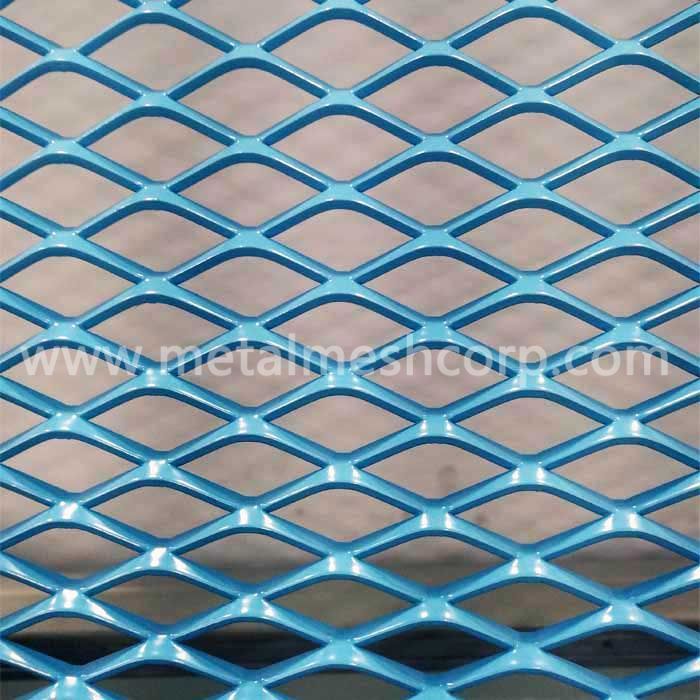

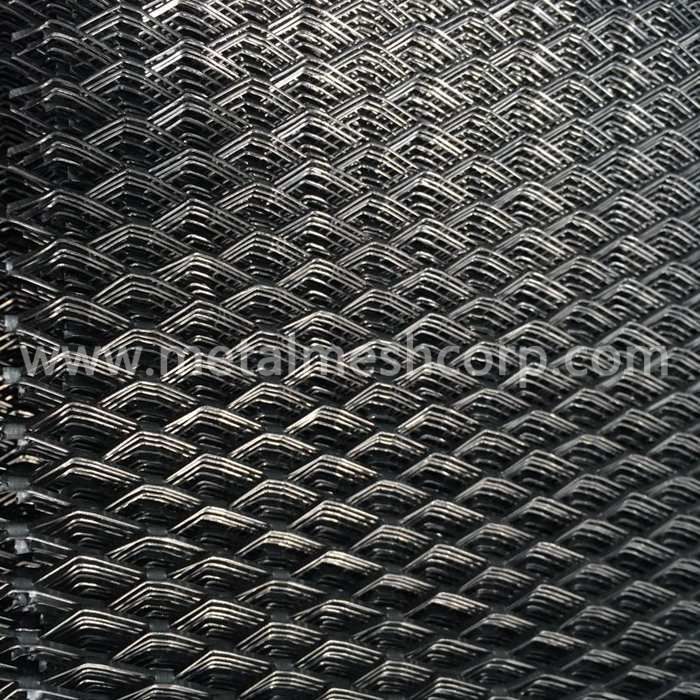

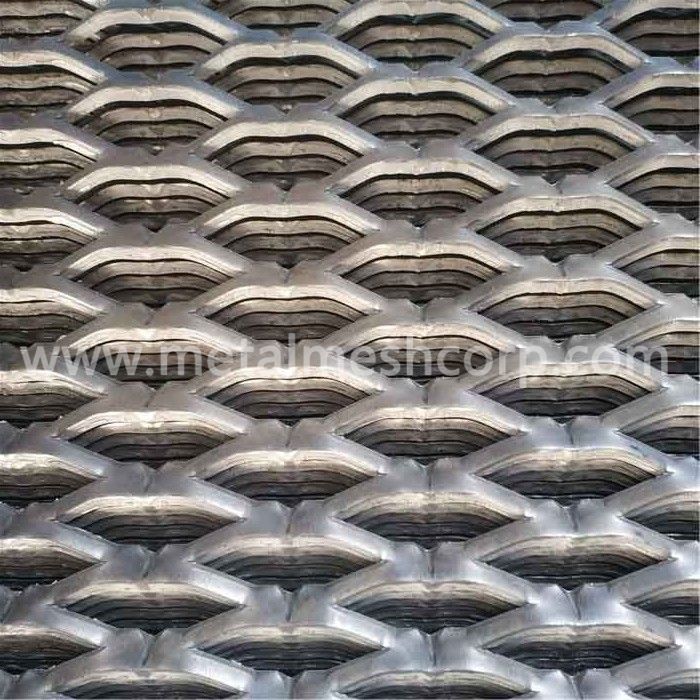

We can offer Industrial Expanded Metal in three types:standard expanded metal,flattened expanded metal and expanded metal grating.
Product parameters
Parameters for Industrial Expanded Metal :
XS/XG Expanded Metal | Thickness | Strand | LWDXSWD | LWM | SWM |
Expanded Metal XS-31 | 1.2 | 1.5 | 30.5x12 | 1220 | 2440 |
Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
Expanded Metal XS-33 | 2.3 | 3 | 30.5x12 | 1220 | 2440 |
Expanded Metal XS-41 | 1.6 | 2 | 50.8x22 | 1220 | 2440 |
Expanded Metal XS-42 | 2.3 | 2.5 | 50.8x22 | 1220 | 2440 |
Expanded Metal XS-43 | 3.2 | 3.5 | 50.8x22 | 1220 | 2440 |
Expanded Metal XS-51 | 1.6 | 2.5 | 61x25 | 1220 | 2440 |
Expanded Metal XS-52 | 2.3 | 3 | 61x25 | 1220 | 2440 |
Expanded Metal XS-53 | 3.2 | 4 | 61x25 | 1220 | 2440 |
Expanded Metal XS-61 | 2.3 | 3 | 76.2x34 | 1220 | 2440 |
Expanded Metal XS-62 | 3.2 | 4 | 76.2x34 | 1220 | 2440 |
Expanded Metal XS-63 | 4.5 | 5 | 76.2x34 | 1220 | 2440 |
Expanded Metal XS-71 | 2.3 | 3.5 | 152.4x50 | 1220 | 2440 |
Expanded Metal XS-72 | 3.2 | 4 | 152.4x50 | 1220 | 2440 |
Expanded Metal XS-73 | 4.5 | 5 | 152.4x50 | 1220 | 2440 |
Expanded Metal XS-81 | 3.2 | 4 | 203.2x75 | 1220 | 2440 |
Expanded Metal XS-82 | 4.5 | 5 | 203.2x75 | 1220 | 2440 |
Expanded Metal XS-83 | 6 | 6 | 203.2x75 | 1220 | 2440 |
Expanded Metal XS-91 | 3.2 | 5 | 304.8X115 | 1220 | 2440 |
Expanded Metal XS-92 | 4.5 | 6 | 304.8X115 | 1220 | 2440 |
Expanded Metal XS-93 | 6 | 7 | 304.8X115 | 1220 | 2440 |
Expanded Metal XG-11 | 4.5 | 7 | 135.4x34 | 1220 | 2440 |
Expanded Metal XG-12 | 6 | 7 | 135.4x34 | 1220 | 2440 |
Expanded Metal XG-13 | 6 | 9 | 135.4x34 | 1220 | 2440 |
Expanded Metal XG-14 | 8 | 9 | 135.4x34 | 1220 | 2440 |
Expanded Metal XG-21 | 4.5 | 7 | 101.6x36 | 1220 | 2440 |
Expanded Metal XG-22 | 6 | 7 | 101.6x36 | 1220 | 2440 |
Expanded Metal XG-23 | 6 | 9 | 101.6x36 | 1220 | 2440 |
Expanded Metal XG-24 | 8 | 9 | 101.6x36 | 1220 | 2440 |
Flattened Expanded Metal | ||||||
Flattened Expanded Metal Style | Weight in lbs.per C.S.F | Standard Size in feet | SWD | LWD | Size of Strands in inches | |
Flattened Expanded 1/4" #20 | 83 | 4X8 | 0.255 | 1.030 | 0.086 | 0.03 |
Flattened Expanded 1/4" #18 | 111 | 4X8 | 0.255 | 1.030 | 0.086 | 0.04 |
Flattened Expanded 1/2" #20 | 40 | 4X8 | 0.500 | 1.260 | 0.07 | 0.029 |
Flattened Expanded 1/2" #18 | 66 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.109 | 0.039 |
Flattened Expanded 1/2" #16 | 82 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.103 | 0.05 |
Flattened Expanded 1/2" #13 | 140 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.122 | 0.07 |
Flattened Expanded 3/4" #16 | 51 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.115 | 0.048 |
Flattened Expanded 3/4" #14 | 63 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.119 | 0.061 |
Flattened Expanded 3/4" #13 | 75 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.119 | 0.07 |
Flattened Expanded 3/4" #10 | 114 | 4X8 | 0.923 | 2.100 | 0.16 | 0.07 |
Flattened Expanded 3/4" #9 | 171 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.164 | 0.12 |
Flattened Expanded 1" #10 | 165 | 4X8 | 1.090 | 2.560 | 0.16 | 0.11 |
Flattened Expanded 1 1/2" #16 | 38 | 4X8 | 1.330 | 3.200 | 0.123 | 0.048 |
Flattened Expanded 1 1/2" #14 | 46 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.138 | 0.06 |
Flattened Expanded 1 1/2" #13 | 57 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.138 | 0.07 |
Flattened Expanded 1 1/2" #12 | 66 | 4X8 | 1.330 | 3.200 | 0.116 | 0.085 |
Flattened Expanded 1 1/2" #10 | 165 | 4X8 | 1.330 | 3.200 | 0.188 | 0.11 |
Flattened Expanded 1 1/2 “ #9 | 111 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.175 | 0.11 |
When you order Industrial Expanded Metal ,pls state:
Product Features
Industrial Expanded Metal Features:
Ventilate, easy to construction and economical.
Light-weighted and sturdy.
Rhombic or tortoise-shaped mesh, tidy, not stretchy, endurable.
Artistic, fit to decorate.
Scope of application
Uses of Industrial Expanded Metal:

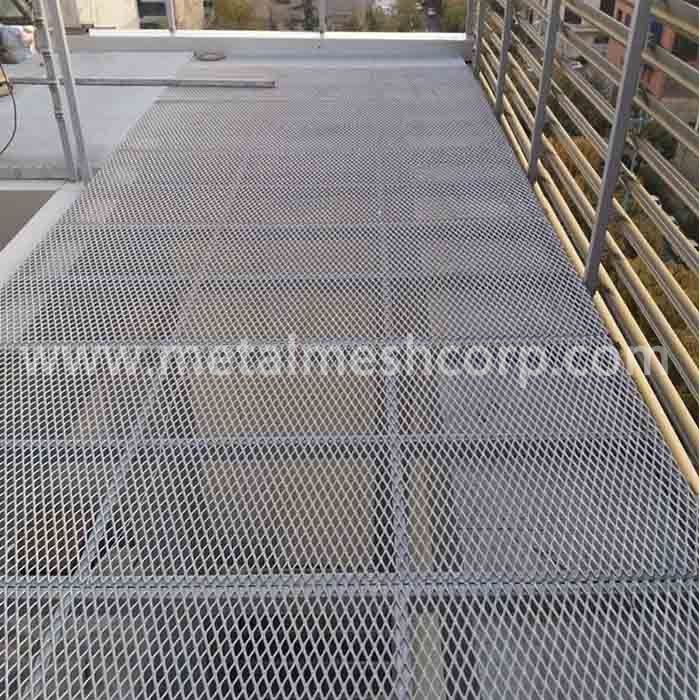

Expanded metal lath can be functionally or decoratively in applications, including walkway, stair treads,platform in workshop,screening, safety guard wall of machinery, cable shelves,basket enclosure,protection walls,security fence, decorative racks, suspended ceiling, pedestrian barrier, grilles, balustrades, fencing, greenwall, facade, etc.
