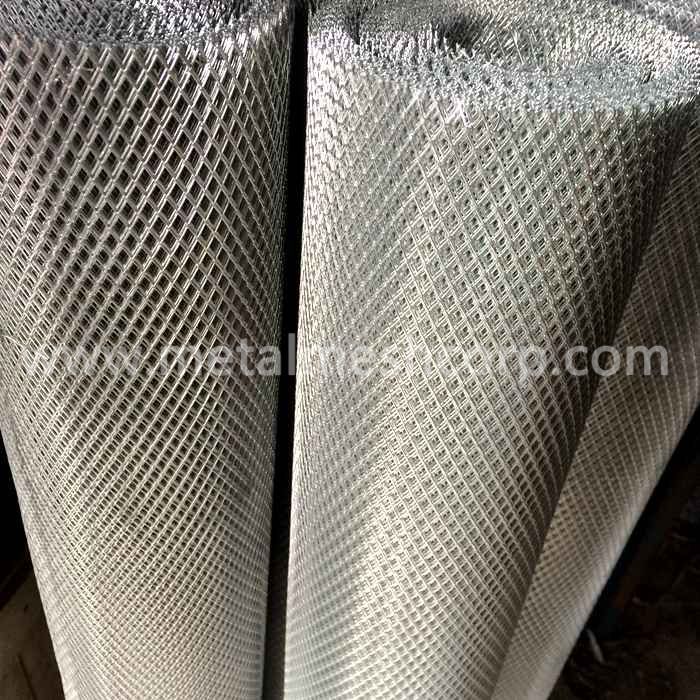

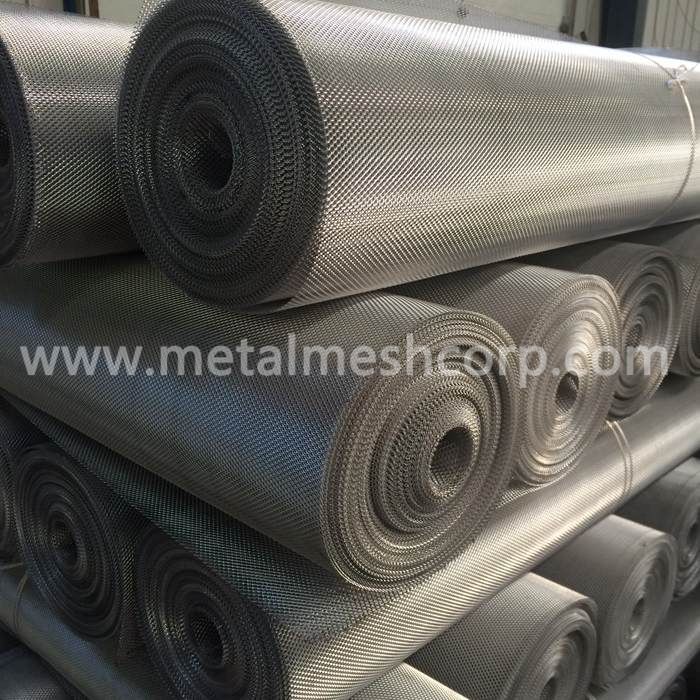

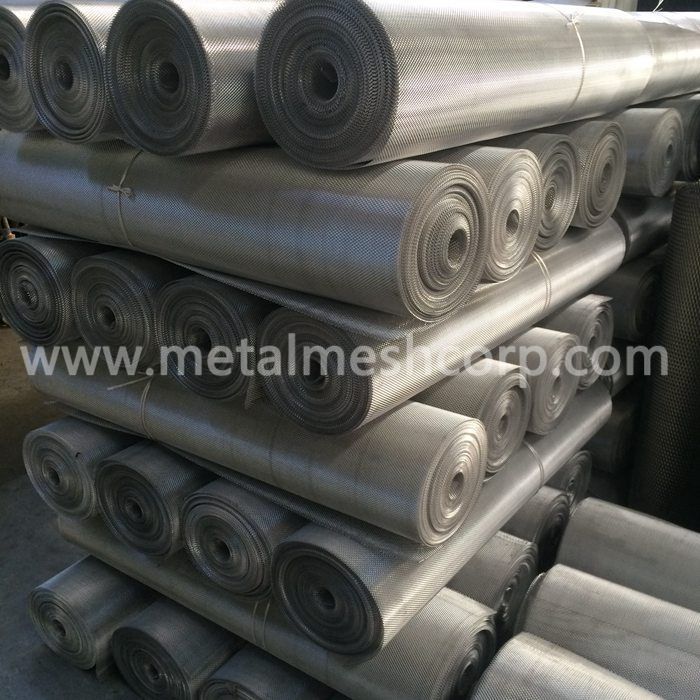

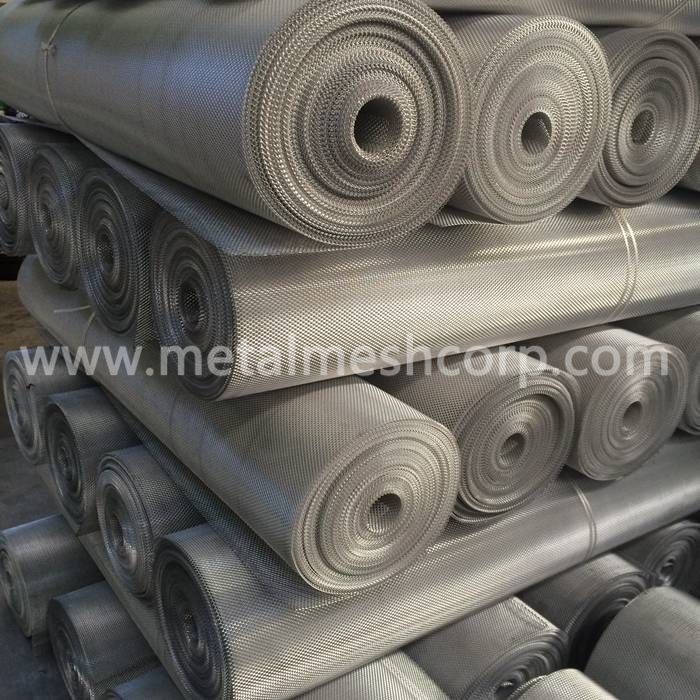

Micro Expanded Metal Mesh is durable and economical for filter element & support, gutter filter, batteries grid plate, aesthetic paneling, decorative mesh and so on.
Product parameters
Parameters for Micro Expanded Metal Mesh
| XS/XG Expanded Metal | Thickness | Strand | LWDXSWD | LWM | SWM |
| Expanded Metal XS-31 | 1.2 | 1.5 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-33 | 2.3 | 3 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-41 | 1.6 | 2 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-42 | 2.3 | 2.5 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-43 | 3.2 | 3.5 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-51 | 1.6 | 2.5 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-52 | 2.3 | 3 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-53 | 3.2 | 4 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-61 | 2.3 | 3 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-62 | 3.2 | 4 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-63 | 4.5 | 5 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-71 | 2.3 | 3.5 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-72 | 3.2 | 4 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-73 | 4.5 | 5 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-81 | 3.2 | 4 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-82 | 4.5 | 5 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-83 | 6 | 6 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-91 | 3.2 | 5 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XS-92 | 4.5 | 6 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XS-93 | 6 | 7 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XG-11 | 4.5 | 7 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-12 | 6 | 7 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-13 | 6 | 9 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-14 | 8 | 9 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-21 | 4.5 | 7 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-22 | 6 | 7 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-23 | 6 | 9 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-24 | 8 | 9 | 101.6x36 | 1220 | 2440 |
| Flattened Micro Expanded Metal Mesh for filter | ||||||
| Flattened Expanded Metal Style | Weight in lbs.per C.S.F | Standard Size in feet | SWD | LWD | Size of Strands in inches | |
| Flattened Expanded 1/4" #20 | 83 | 4X8 | 0.255 | 1.030 | 0.086 | 0.03 |
| Flattened Expanded 1/4" #18 | 111 | 4X8 | 0.255 | 1.030 | 0.086 | 0.04 |
| Flattened Expanded 1/2" #20 | 40 | 4X8 | 0.500 | 1.260 | 0.07 | 0.029 |
| Flattened Expanded 1/2" #18 | 66 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.109 | 0.039 |
| Flattened Expanded 1/2" #16 | 82 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.103 | 0.05 |
| Flattened Expanded 1/2" #13 | 140 | 4X8,4X10,5X10 | 0.500 | 1.260 | 0.122 | 0.07 |
| Flattened Expanded 3/4" #16 | 51 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.115 | 0.048 |
| Flattened Expanded 3/4" #14 | 63 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.119 | 0.061 |
| Flattened Expanded 3/4" #13 | 75 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.119 | 0.07 |
| Flattened Expanded 3/4" #10 | 114 | 4X8 | 0.923 | 2.100 | 0.16 | 0.07 |
| Flattened Expanded 3/4" #9 | 171 | 4X8,4X10,5X10 | 0.923 | 2.100 | 0.164 | 0.12 |
| Flattened Expanded 1" #10 | 165 | 4X8 | 1.090 | 2.560 | 0.16 | 0.11 |
| Flattened Expanded 1 1/2" #16 | 38 | 4X8 | 1.330 | 3.200 | 0.123 | 0.048 |
| Flattened Expanded 1 1/2" #14 | 46 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.138 | 0.06 |
| Flattened Expanded 1 1/2" #13 | 57 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.138 | 0.07 |
| Flattened Expanded 1 1/2" #12 | 66 | 4X8 | 1.330 | 3.200 | 0.116 | 0.085 |
| Flattened Expanded 1 1/2" #10 | 165 | 4X8 | 1.330 | 3.200 | 0.188 | 0.11 |
| Flattened Expanded 1 1/2 “ #9 | 111 | 4X8,4X10,5X10 | 1.330 | 3.200 | 0.175 | 0.11 |
When you order Micro Expanded Metal Mesh ,pls state:
Scope of application
Applications for micro expanded metal mesh:
Speaker grill covering.
Covering & support for air and fluid filter.
Strainer.
Furniture,
container.
Battery cell.
Ventilation system.
Satellite and radar antenna.
Decorative mesh.
30years Aluminum Expanded Metal Factory Aluminum Expanded Metal Mesh is made from aluminum plate that is uniformly punched/slit and stretched, forming openings of diamond / rhombic (standard) shape. Being expanded, the aluminum mesh plate will be in shape for a long time under normal conditions. The diamond-shaped structure and trusses make this type of mesh grille strong and rigid.
