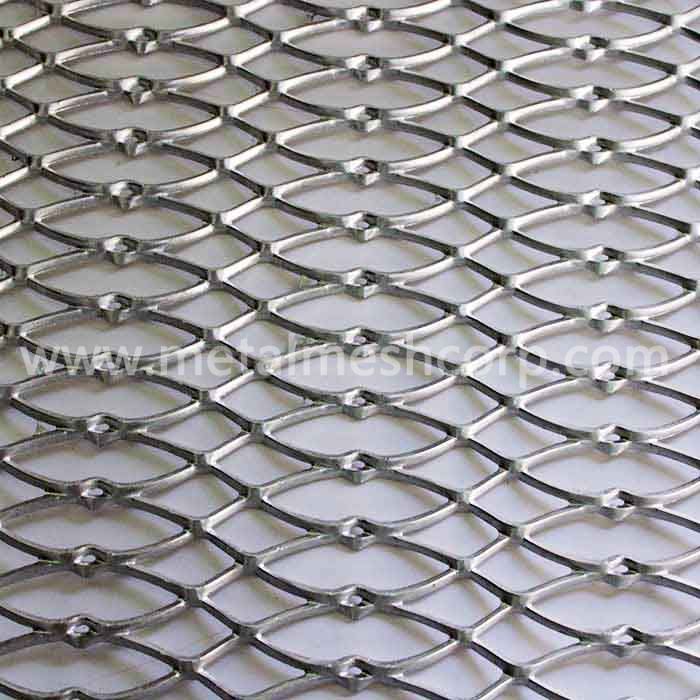

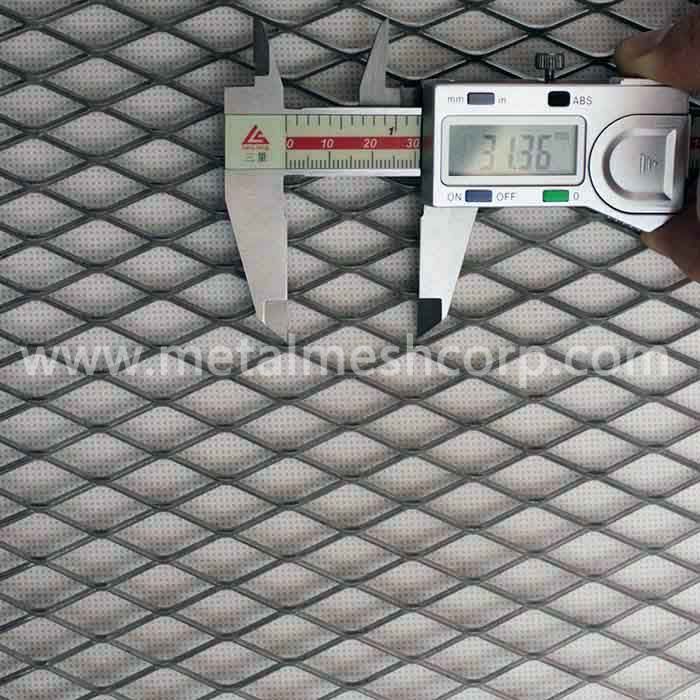

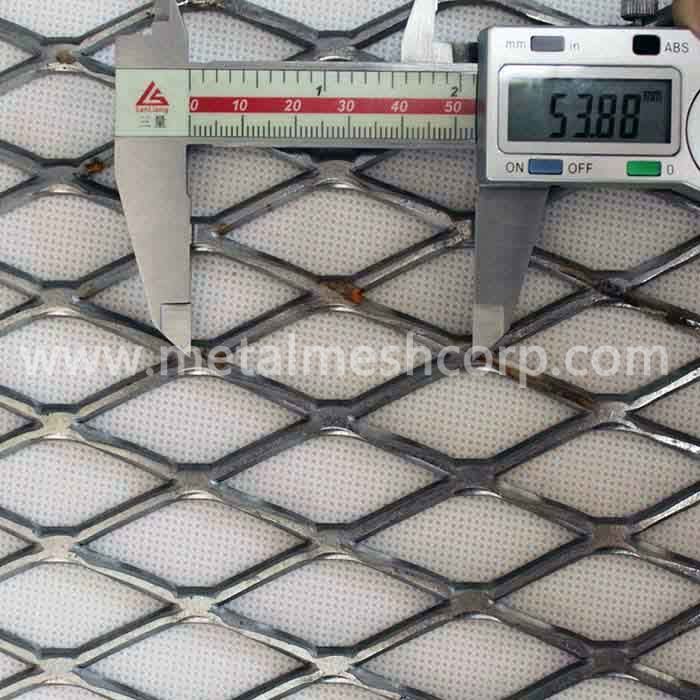

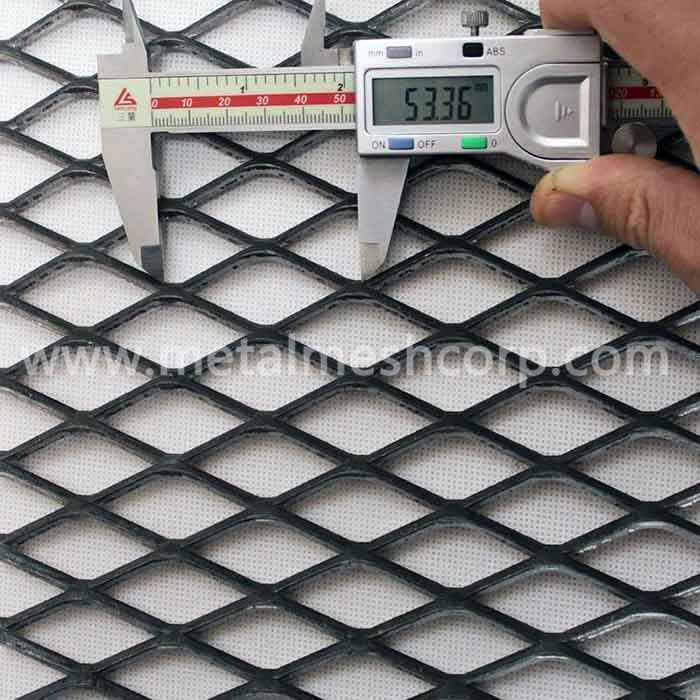

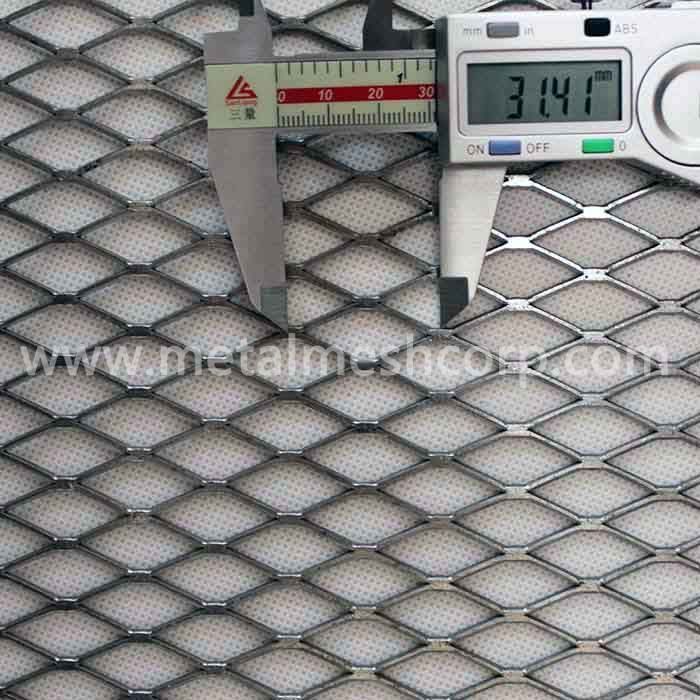

Taiwan Jis G3351 Expanded Metal including XS-expanded metal.XG expanded metal,G style expanded metal and S style expanded metal.
Product parameters
Parameters for Taiwan Standard JIS expanded metal:
| XS/XG Expanded Metal | Thickness | Strand | LWDXSWD | LWM | SWM |
| Expanded Metal XS-31 | 1.2 | 1.5 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-33 | 2.3 | 3 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-41 | 1.6 | 2 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-42 | 2.3 | 2.5 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-43 | 3.2 | 3.5 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-51 | 1.6 | 2.5 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-52 | 2.3 | 3 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-53 | 3.2 | 4 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-61 | 2.3 | 3 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-62 | 3.2 | 4 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-63 | 4.5 | 5 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-71 | 2.3 | 3.5 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-72 | 3.2 | 4 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-73 | 4.5 | 5 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-81 | 3.2 | 4 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-82 | 4.5 | 5 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-83 | 6 | 6 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-91 | 3.2 | 5 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XS-92 | 4.5 | 6 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XS-93 | 6 | 7 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XG-11 | 4.5 | 7 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-12 | 6 | 7 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-13 | 6 | 9 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-14 | 8 | 9 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-21 | 4.5 | 7 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-22 | 6 | 7 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-23 | 6 | 9 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-24 | 8 | 9 | 101.6x36 | 1220 | 2440 |
When you order Japan Standard JIS expanded metal,pls state:
Product Features
Features and benefits of Taiwan Standard JIS Expanded Metal :
The mesh is formed from a single piece of metal
The process is not wasteful of material
Higher strength-to-weight ratio than sheet metal
Anti-slip surface
Excludes and retains simultaneously
Premium reinforcement properties
Practical and effective screening
Super corrosion resistance
Scope of application
Applications for Taiwan Standard JIS Expanded Metal :
Walkway、Stairtread、Platform in factory. Drain Grating、safety guards、 security installations、decorative racks、suspended ceiling、pedestrian barrier、grilles、balustrades…etc
