358 Welded Anti Climbing Fence – Prison Mesh Fencing

High security welded wire fencing systems are used in some of the highest risk locations in the world. For high security fencing systems, this is the gold standard.

While some areas may not yet require the highest security perimeter fencing options for many sites, there is growing interest and demand for high security fencing systems that may not stand up on other sites.

Our 358 Mesh creates barriers that are difficult to climb, difficult to cut, and impact resistant. In many cases, these fencing systems may be integrated with electronic accessories such as underground security measures, fence top security, or fence detection systems.

358 anti climb fence, known as "prison mesh", is a high security anti-climbing and anti-cutting welded wire fence. Galvanized wire, commonly, is welded into fencing panels with extremely fine opening holes, which cannot be penetrated by hand fingers or cut by bolt cutters. Therefore it is highly recommended for high security needed area and private living field.

The name—358 high security fence comes from the size of panel mesh opening and wire diameter: 3'' × 0.5'' × 8 gauge, approximately equals to: 76.2 mm × 12.7 mm × 4 mm. As a welded wire fence, galvanized after welded and then PVC coated is recommended for a sturdy structure and corrosion resistance ability.

358 anti climb fence features:

✱ Anti-climb: The opening holes are so small that even fingers cannot penetrate in.

✱ Anti-cut: Bolt cutter and wire cutter cannot make itself through the narrow holes, therefore the fence won't be destroyed.

✱ Strong welded point: The welded joints are fixed firmly, won't split by natural human and nature force.

✱ Smooth surface: The panel finish surface is well-proportioned for a decorative effect.

✱ Durable: The panel sheet is galvanized uniformly and PVC coated, which ensures a long service life.

358 anti climb fence application:

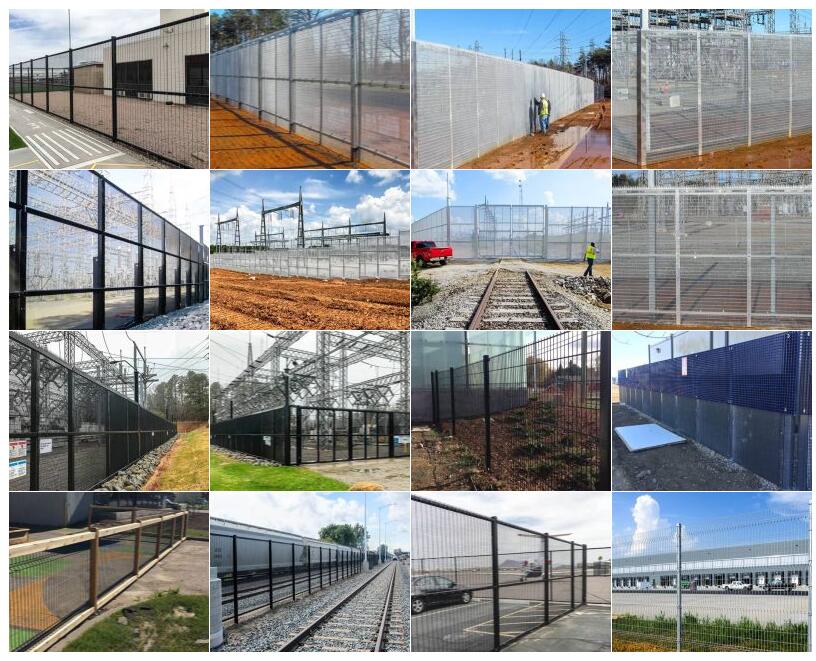

358 anti climb fence is a high secure fence, suitable places include:

✱Prison.

✱Military sites.

✱Detention center.

✱Psychiatric hospital.

✱Airport.

✱Bridge.

✱Sub-station.

✱Shipping port.

✱Warehouse.

✱Power plant.

✱Laboratory.

✱Petroleum and chemical facilities guarding.

✱Industrial and commercial property, etc.

Specification:

◮358 mesh panel size

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5").

Wire diameter: 4 mm horizontal wire and vertical Wire.

Weld strength: range 540–690 N/m2.

Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.

Colors: green (RAL 6005), black (RAL 9005). All RAL color is available.

Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.

◮Fence posts

Material: high grade steel for maximum strength and rigidity.

Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm, 120 × 120 mm.

Post Plate thickness: 2.5 mm or 3.0 mm, 4.0 mm, 5.0 mm.

Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).

Colors: same as panel.

Post cap: metal caps or plastic cap.

Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

Whether you are considering a welded wire mesh product such as 358 or 3510, or looking for a way to incorporate expanded or perforated metal into a specific high-risk area in your neighborhood, we are happy to provide pricing, design assistance or even custom fabrication requirements for it during the project.
