Sieve Analysis: Different sieving methods for a wide variety of applications

The solubility of drugs, the taste of chocolate or the solidity of concrete - these are only a few examples of physical or chemical material properties which are influenced  by particle size. Hence, the determination and knowledge of the particle size distribution is an essential part of the quality control process for industrial products.  From incoming and production control to research and development, sieve analysis is used to determine a number of parameters or simply the particle size. Easy handling, low investment cost and high accuracy make sieve analysis one of the most  frequently used procedures for measuring the particle size. This article gives an overview of the different sieving techniques and describes the necessary steps to ensure reliable results.

Sieving is carried out to separate a sample according to its particle sizes by submitting it to mechanical force. The direction, intensity and type of force depends on the selected sieving method. The sample is either moved in horizontal or vertical direction. Air jet sieving is a special case, here the sample is dispersed by an air jet blown out of a rotating nozzle.

SS304 Perforated Filter Mesh

Which factors need to be established to select a suitable  sieving method?

● Standards

Sieving methods are described in the DIN standard 66165 and ISO standard 2591-1. If industry-specific test procedures or standards exist these also determine the choice of method.

● Sample properties

It should be taken into account whether the particles form agglomerates, which density the material has or if it tends to be electrostatically charged.

● Particle size

If the required measuring range lies between approximately 40 microns and 125 mm, classical dry sieving is the method of choice. The range may be extended to 20 microns   by wet sieving and to 10 microns by air jet sieving.

● Number of fractions

Are several fractions required? Or is it sufficient to know which percentage of the sample is smaller or bigger than a defined particle size? The method for obtaining the latter information is called a sieve cut because the sample is simply separated into two fractions.

Different Sieving Methods

Once these questions are satisfactorily answered, a suitable sieving method can be selected. Vibratory sieving, vibratory with wet sieving or Air jet sieving.

Vibratory sieving:

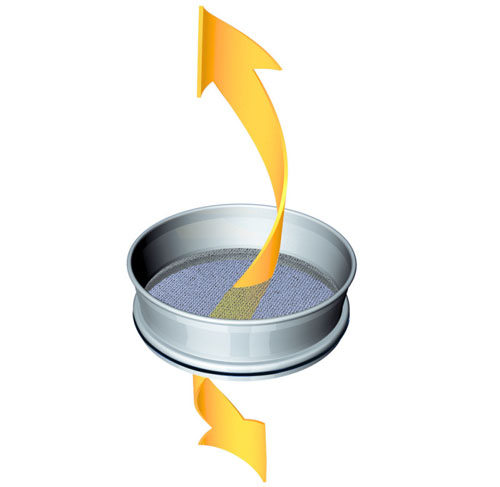

Vibratory sieving submits the sample to three dimensional movements. A vertical throwing motion is superimposed by a circular movement. This mechanism causes the particles to be evenly distributed over the entire sieving surface and to be thrown into the air where they ideally change their orientation in a way that allows them to be compared to the sieve apertures in all possible dimensions.

Wet sieving:

A special case of vibratory sieving is wet sieving. Agglomerates, electrostatic charging or a high degree of fineness can all make the sieving process difficult, and in such cases, wet sieving may be called for. This involves washing the sample through the sieve stack in a suitable medium which is usually water.

Air jet sieving:

To obtain a sieve cut by air jet sieving only one sieve is used instead of a stack of sieves, and the sieve itself is not put into motion. An industrial vacuum cleaner generates low pressure inside the sieve chamber. The sucked-in air escapes with high speed from the rotating slit nozzle below the sieve and disperses the particles which can then be compared to the sieve apertures. When the particles hit the sieve lid they are not only redirected but also deagglomerated. The particles which are small enough are then transported through the sieve mesh and sucked out. It is also possible to collect them in a cyclone.
