Comprehending the weaving types

There are so many weaving types in woven wire cloth, each one has their own characters, you can refer to it and know more about the weaving method.

● Crimped.

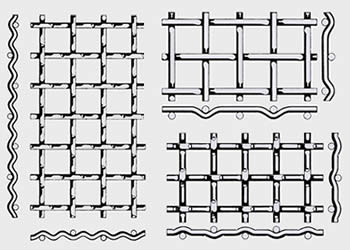

Crimped weaving method.

►The crimped refers to the wires are pre-crimped before weaving. It is also called intermediate crimped. This structure can ensure the accurate of the opening, and it can keep the wires in their positions.

►There are another two types of weaving method, which are used in the crimped woven wire mesh. That is the flat top and lock crimped. The flat top is also called pressed weaving method. The wires are pressed and form a smooth surface. This type can be used in the vibrating screen to improve the working efficiency and reduce the blocking. The lock crimped weaving method can also lock the wires in their position, but the wires are not pre-crimped before weaving, they are crimped directly.

● Plain weave.

Plain weave woven wire cloth is widely used in the vibrating screen, window screen, and other applications. Plain weave means each of the weft wire crosses over and under one line warp wire and each weft wire crosses over and under successive rows of warp wire.

● Twill weave.

Different from the plain weave, the twill weave woven wire cloth has more solid structure than the plain weave. Each weft wire passes over and under successively two rows of warp wire and vice versa. Both the plain weave and twill weave has the same wire diameter in the weft wire and warp wire.

● Dutch weave.

Dutch weave can be divided into the plain dutch weave, twill dutch weave and reverse dutch weave. The dutch weave woven wire cloth is widely used in the filtering industries.
The plain dutch weave and twill means the wire diameter of the weft wire and warp wire is different.
Commonly the warp wire is coarser than the weft wire. And the opening of the weft wire direction is more than the warp wire direction. The twill dutch weave has smaller opening than the plain dutch, so it is ideal for filtering the smaller and thinner materials. The reverse dutch weave is opposite from the plain dutch weave and twill dutch weave. The wire diameter of the weft wire is coarser than the warp wire. Dutch weave woven wire cloth is commonly used as the woven wire filter cloth for the solid, liquid and gas in the chemical, metallurgy, spaceflight and other industries.

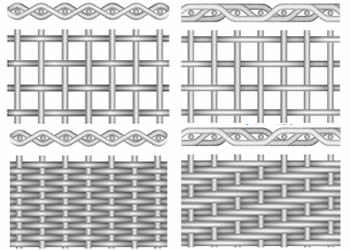

Plain weave, twill weave and dutch weave
